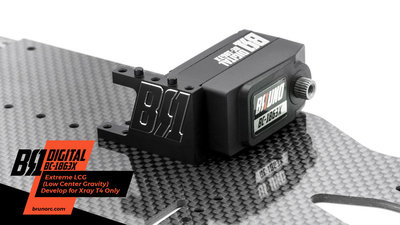

BRUNO RC BC-1863X Digital Servo LCG for Xray T4 Only - BR1-BC-1863X

Technical specifications:

• Low profile digital servo direct mount for XRAY T4 after 2017
• Metal gear
• black wire (about 50mm long)
• SSR capable
• 25 teeth
• Speed @ 6V: 0.076sec / 60 °
• Torque @ 6V: 10.0kg
• Weight: 48g
• Dimensions: 40.8mm x 25.4mm x 20.2mm

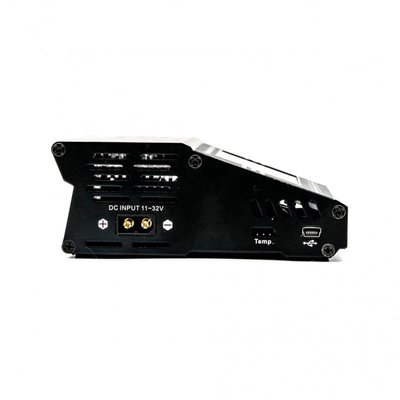

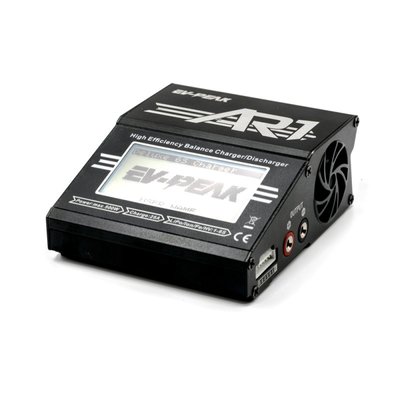

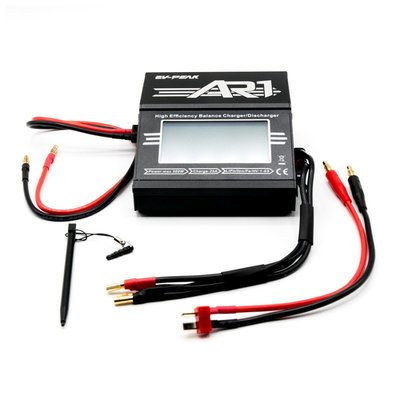

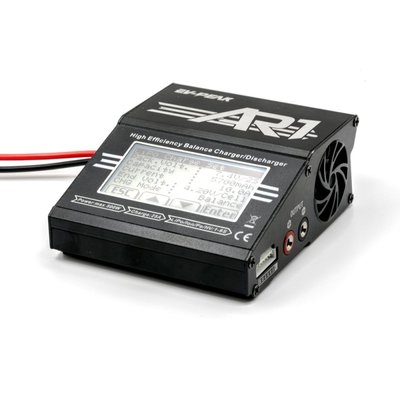

AR1 25A Multi Function Intelligent Touch Screen Balance Charger / Discharger BLACK EDITION


AR1 charger is a multi function touch screen balance charger/discharger,it supports 1-6 cells LiPo/LiHV/LiFe batteries and 1-15 cells NiMH/NiCd batteries,maximum 25A/500W charge.

Real-time Status Indication

User can check the current, charging capacity, cell voltage, charging time, battery resistance, etc during charger working.


Multi Functions

LiHV Mode Available

With LiHV mode available, it is able to charge the 4.35V high voltage LiPo battery

Temperature Protection

With an optional temperature sensor connected, if the battery temperature limit is reached, charger will stop charging or discharging process immediately

20 Battery Memory Data

It can save max.20 battery memories to save the time on parameter setting

Data View

The battery voltage and IR Data check


Digital Power

Capable of supplying 500W/5-24V DC power for other devices, such as tire warmer, PIT light etc.



PC Communication

Buit-in Micro USB port for PC communication and firmware upgrade





Specifications

Hobbywing Combo XR10 PRO & V10 G3 - B: 4.5T 7340kv - 38020229

Hobbywing Combo XR10 PRO & V10 G3 - C: 5.5T 5900kv - 38020230

Hobbywing Wifi express - 30503000

Hobbywing XeRun V10 13.5T Black G3 3710kv - 30401103

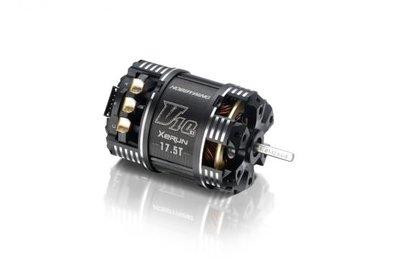

Hobbywing XeRun V10 17.5T Black G3 2830kv - 30401104

Hobbywing XeRun V10 4.5T Black G3 7340kv - 30401102

Hobbywing XeRun V10 5T Black G3 6500KV - 30401116

Hobbywing XeRun V10 6.5T Black G3 5120kv - 30401109

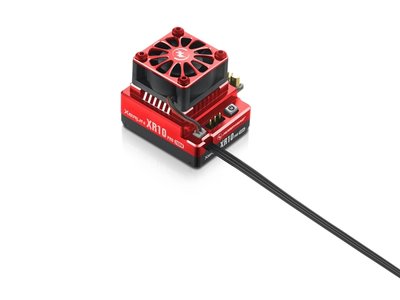

Hobbywing XeRun XR10 Pro 160A ESC - Black - 30112600

Hobbywing XeRun XR10 Pro 160A ESC - Orange - 30112601

Hobbywing XeRun XR10 Pro 160A ESC - Red - 30112602

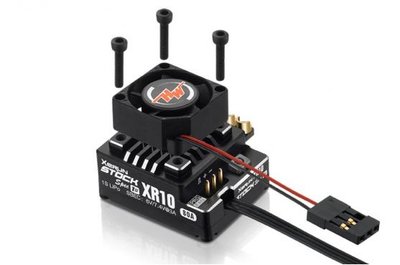

Hobbywing XeRun XR10 PRO-STOCK SPEC-1S V4 ESC 80A Black - 30112751

FLOW-MAX2™ OPTIMIZED COOLING DESIGN
FLOW-MAX2™ Air hole designed maximum cooling through various tests.

RPM LIMIT BLINKY MODE
FLETA EURO V2 ESC has RPM Limit mode functions.
Using the RPM Limit mode, ESC control the limit RPM when your driving. This mode more fair control stock race. This function operate "Blinky V3.0_25RE2" firmware, Easy setup change of Normal Blinky mode and RPM limit Blinky mode with out firmware update .
FLETA EURO V2 is the black translucent case, so you can easily check the mode.

DIRECT MOTOR & ESC COOLING FAN POWER
Battery power directly supply to the cooling fan, be able to do more high RPM cooling to ESC, Motor. ESC had separate motor cooling fan port, no needs soldering for the motor cooling fan wire.

- Optional Part-
MR-TU25FAN Turbo Cooling Fan 25x25x10mm
MR-TU30FAN Turbo Cooling Fan 30x30x10mm
MR-TU40FAN Turbo Cooling Fan 40x40x10mm

FELTA EURO V2 ESC Cooling fan is directly connected to the battery. However, if ESC turns off, the cooling fan will operate even. So battery voltage may drop if left unattended for a long time.

INTERNAL SWITCH SYSTEM
FLETA EURO V2's internal switch makes the wiring convenient.
- Power On/Off
- Calibration Setup
- RPM Limit Blinky mode <> Normal Blinky mode

If you want to change Blinky mode, With the power on Press setup button successively 3 times .
You can check which Blinky mode with LED status.

Normal Blinky mode: Green Fast Flashing
RPM Limit Blinky mode: Green Flashing twice and Red flash once

COMPACT & LIGHTWEIGHT DESIGN
FLETA EURO V2's compact & lightweight design, will make variety layout and spacious space on chassis. more easy adjusting the chassis balance.
Included 20x20mm ESC Cooling Fan and Motor connectors Female 3pcs, Male 3pcs

Current Continuous Continuous 80A / Peak 380A Input 2S LiPo, 2S LiFe, 5-7 cell NiMh/NiCd BEC Output Switch Mode 6V/7.4V @3A Suppoerted Motor Type 540 size 2 pole brushless with sensor type Suitable Motor Over 9.5T Size 26.5 x 32.7 x 17mm Weight 21.5g (without Wire, Capacitor and Cooling fan)

Muchmore Racing research and development team succeeded to make a brand new motor that guarantees maximum power and efficiency.
Flow-Max 2 Cooling System is produced by simple 2-piece CNC processing that allows superior cooling effect.
We were able to enhance the cooling efficiency by 15% in comparison to our past motor products which is great achievement in terms of keeping the motor performance as high as possible.
In addition, the High Power New Stator Design approach doesn’t use separate insulator.
Therefore, less weight and maximum cooling efficiency achieved.
All FLETA ZX V2 motor incorporates “Maximum Low Resistance Copper Wire” that allows low internal resistance which results in maximum output power increase.
The motor uses Heavy-duty silver-plate solder tabs which reduce resistance.
Also, it uses the double eyelet to prevent fatiguing over time.
The stator design achieves very low internal resistance in exchange for surprisingly high output power.
Improved ease of maintenance and loss of weight is additional features achieved by NEW V2 design.

All new FLETA ZX V2 motor promises maximum power output and RPM achieved by Pure copper magnetic wire
and Low resistance collector rings.
MIXED TIMING Version of new FLETA ZX V2 Brushless motor is now available.
FLETA ZX V2 Fixed Timing Brushless motor is consistent with the rules of the ETS, many national championships, club races.
All new stator design offers smooth acceleration both on- and off-road racings.
Our recently upgraded manufacturing capability has achieved “precision balanced neodymium high-temperature rotor” which shows enhanced performance.
Also, special setup program and optional rotors make various kinds of tune-ups possible according to drivers’ choices.

PowerHD 1206TG Low Profile Servo

Nice Budget servo for Tamiya models!

Torque(4.8V): 6.0 kg-cm (83.3 oz/in)
Torque(6.0V): 7.0 kg-cm (97.20 oz/in)
Speed: 0.07 sec (4.8V) │ 0.06 sec (6.0V)
Operating Voltage：4.8 ~ 6.0 DC Volts
Weight: 48 g (1.69 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Coreless Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.3 x 20.2 x 26.1 mm ( 1.59 x 0.80 x 1.03 in)

PowerHD B7 Revolution HV Low Profile Servo

Door het gebruik van een kunstof behuizing is deze servo 5 gram lichter dan de storm-7 met dezelfde specificaties. Perfect om je toerwagen in balans te krijgen.

Torque(6.0V): 10.0 kg-cm (138.8 oz/in)
Torque(7.4V): 13.0 kg-cm (180.5 oz/in)
Speed: 0.065 sec (6.0V) │ 0.055 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 47.0 g (1.66 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)

Power HD Black Colour R12 Servo - PHD-R12

Perfect servo for 1/10 Touringcar 1/10 Buggy M-Chassis or F1 with great value for money!

Features:
Torque(6.0V): 9.0 kg-cm (125.0 oz/in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) ¦ 0.06 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 41.0 g (1.45 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Titan & Aluminum
Operating Temperature:-20?~60?
Working Frequence:1520µs / 333hz
Size:41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
Servohorn: 25 teeht (not included)

PowerHD Black Colour Storm-7 low-Profile Servo

Top Touringcar 1/10 Buggy or F1 servo with extreme performance!

Features:
Torque(6.0V): 10.0 kg-cm (125.0 oz/in)
Torque(7.4V): 13.0 kg-cm (166.6 oz/in)
Speed: 0.065 sec (6.0V) ¦ 0.055 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.45 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Titan & Alu
Operating Temperature:-20?~60?
Working frequence:1520µs / 333hz
Size:41.0 x 20.0 x 26.4 mm
Servohorn: 25 teeth (not included)
