Servos

Aluminum Servo Step Screws

Haal het beste uit uw servo met deze stapschroeven, die een strakkere en veiligere bevestiging geven.

Artikelinhoud / Informatie

• Aluminium stapschroeven x4
• Stapschroeven zorgen voor gaten tussen 4,5 mm en 5 mm, en vereisen geen ringen,
wat betekent dat ze een goede pasvorm geven en onderhoudstijd besparen.
• Hex-gaten zorgen voor een stevige bevestiging.
• Sommige servo's hebben slechts 2 schroeven nodig.

Tamiya nummer: 54862

EAN nummer: 4950344548620

The new S25 servo from Power HD is a true multi talent and is perfect to use in a lot of different racing classes. The brushless servo is very strong and reliable and manufactured in the well-known Power HD quality! The S25 is the servo of choice when you need a very fast steering servo for your car!

Features:

• Torque (6.0V): 21.5 kg-cm (298.6 oz/in)
• Torque (7.4V): 25.0 kg-cm (347.2 oz/in)
• Torque (8.4V): 30.0 kg-cm (416.6 oz/in)
• Speed: 0.075 sec (6.0V) ¦ 0.060 sec (7.4V) ¦
• Speed: 0.055 sec (8.4V)
• Operating Voltage: 6.0 ~ 8.4 DC Volts
• Weight: 75.0 g (2.65 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type: Brushless Motor
• Gear Type: Titanium & Steel
• Operating Temperature: -20°~60°
• Working frequence: 1520µs / 333hz
• Size: 40.7 x 20.5 x 38.6mm
• Servohorn: 25 teeth

Specificaties Power HD LF20MG
– Trekkracht 4,8V: 16,5 kg-cm
– Trekkracht 6,6V: 20,0 kg-cm
– Snelheid 4,8V: 0,18 sec
– Snelheid 6,6V: 0,16 sec
– Voltage: 4,8-6,6V
– Gewicht: 60 gr
– Kogellagers: 2
– Motor type: DC motor
– Tandwielen: koper / Aluminium
– Afmetingen: 40,7×20,5×39,5 mm
– Vertanding hevel: 25 tands

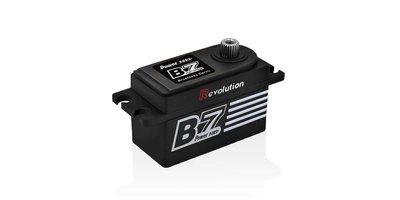

PowerHD B7 Revolution HV Low Profile Servo

Door het gebruik van een kunstof behuizing is deze servo 5 gram lichter dan de storm-7 met dezelfde specificaties. Perfect om je toerwagen in balans te krijgen.

Torque(6.0V): 10.0 kg-cm (138.8 oz/in)
Torque(7.4V): 13.0 kg-cm (180.5 oz/in)
Speed: 0.065 sec (6.0V) │ 0.055 sec (7.4V)
Operating Voltage：6.0 ~ 8.4 DC Volts
Weight: 47.0 g (1.66 oz)
Bearing Type：Ball Bearing x 2
Motor Type：Brushless Motor
Gear Type：Titanium & Steel
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)

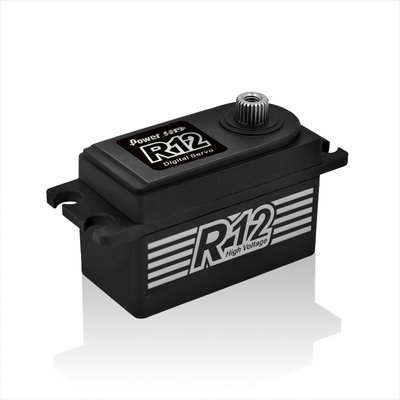

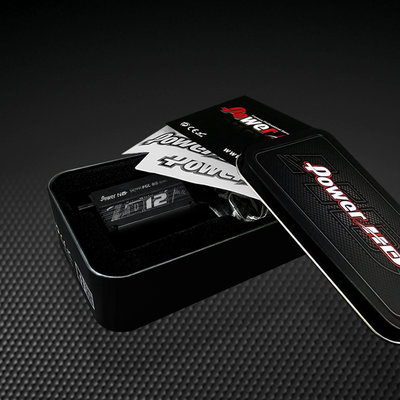

Power HD Black Colour R12 Servo - PHD-R12

Perfect servo for 1/10 Touringcar 1/10 Buggy M-Chassis or F1 with great value for money!

Features:
Torque(6.0V): 9.0 kg-cm (125.0 oz/in)
Torque(7.4V): 12.0 kg-cm (166.6 oz/in)
Speed: 0.07 sec (6.0V) ¦ 0.06 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 41.0 g (1.45 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Coreless Motor
Gear Type:Titan & Aluminum
Operating Temperature:-20?~60?
Working Frequence:1520µs / 333hz
Size:41.0 x 20.0 x 26.4 mm ( 1.61 x 0.79 x 1.04 in)
Servohorn: 25 teeht (not included)

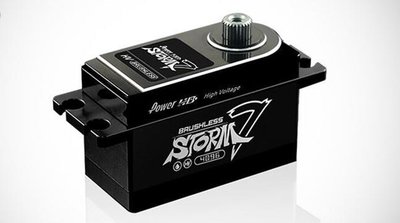

PowerHD Black Colour Storm-7 low-Profile Servo

Top Touringcar 1/10 Buggy or F1 servo with extreme performance!

Features:
Torque(6.0V): 10.0 kg-cm (125.0 oz/in)
Torque(7.4V): 13.0 kg-cm (166.6 oz/in)
Speed: 0.065 sec (6.0V) ¦ 0.055 sec (7.4V)
Operating Voltage:6.0 ~ 8.4 DC Volts
Weight: 52.0 g (1.45 oz)
Bearing Type:Ball Bearing x 2
Motor Type:Brushless Motor
Gear Type:Titan & Alu
Operating Temperature:-20?~60?
Working frequence:1520µs / 333hz
Size:41.0 x 20.0 x 26.4 mm
Servohorn: 25 teeth (not included)

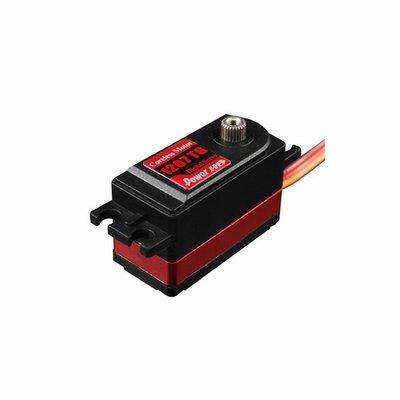

PowerHD Coreless High Voltage 1/12 Servo R6 - PHD-R6

Perfect for 12th cars like XRAY X12, Associated 12R6 etc.

• Torque(6.0V): 6.5 kg-cm (90.26 oz/in)
• Torque(7.4V): 7.5 kg-cm (104.0 oz/in)
• Speed: 0.09 sec (6.0V) │ 0.08 sec (7.4V)
• Operating Voltage：6.0 ~ 8.4 DC Volts
• Weight: 28.5 g (1.01 oz)
• Bearing Type: Ball Bearing x 2
• Motor Type：Coreless Motor
• Gear Type：Copper & Aluminum
• Operating Temperature：-20℃~60℃
• Working frequence：1520μs / 333hz
• Size：35.0 x 15.1 x 29.5 mm ( 1.38 x 0.59 x 1.136 in)

Torque(4.8V): 16.5 kg-cm (229.1 oz/in)
Torque(6.0V): 20.0 kg-cm (277.7 oz/in)
Speed: 0.18 sec (4.8V) │ 0.16 sec (6.6V)
Operating Voltage：4.8 ~ 6.6 DC Volts
Weight: 60 g (2.12 oz)
Bearing Type：Ball Bearing x 2
Motor Type：DC Motor
Gear Type：Copper & Aluminum
Operating Temperature：-20℃~60℃
Working frequence：1520μs / 333hz
Size：40.7 x 20.5 x 39.5 mm ( 1.60 x 0.80 x 1.55 in)

Specificaties Power HD LF-13MG
- Trekkracht 4,8V: 10,5 kg-cm
- Trekkracht 6,6V: 13,0 kg-cm
- Snelheid 4,8V: 0,15 sec.
- Snelheid 6,6V: 0,12 sec
- Voltage: 4,8-6,6V
- Gewicht: 60 gr
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Koper / Aluminium
- Frequentie: 1520μs/333hz
- Afmetingen: 40,7 x 20,5 x 39,5 mm

- Trekkracht 4,8V: 3,5 kg-cm
- Trekkracht 6,0V: 4,4 kg-cm
- Snelheid 4,8V: 0,14 sec.
- Snelheid 6,0V: 0,12 sec
- Voltage: 4,8-6,0V
- Gewicht: 43 gr
- Kogellager: 2x
- Motor type: DC motor
- Tandwielen: Kunststof
- Afmetingen: 40,7 x 20,5 x 39,5 mm

This Digital Brushless Low Profile Servo from Power HD with the name “S15” is one of the most valuable servos on the market right now. It has all you need to drive your racecar to the win. The full machined aluminum case makes it very durable and the torque and speed of this servo is really outstanding. For the design of different cars you can choose the S15 with silver, golden or red color accents to look even better in your car! Check out the features of the S15 to see what it`s all about!

Features:

• Torque(6.0V): 11.5 kg-cm
• Torque(7.4V): 15.0 kg-cm
• Speed: 0.072 sec (6.0V) ¦ 0.060 sec (7.4V)
• Operating Voltage:6.0 ~ 8.4 DC Volts
• Weight: 52.0 g
• Bearing Type:Ball
• Bearing x 2
• Motor Type:Digital Brushless Motor
• Gear Type:Titan & Aluminum
• Size:41.0 x 20.0 x 26 mm
• Receiver wire: 80mm length, black, JR Connector
• Servohorn: 25 teeht (not included)

Power HD-1501MG Analog Servo
Koppel (4,8 V): 15,5 kg-cm (215,3 oz / in)
Koppel (6,0 V): 17,0 kg-cm (236,1 oz / in)
Snelheid: 0,16 sec (4,8 V) │ 0,14 sec (6,0 V)
Bedrijfsspanning: 4.8 ~ 6.0 DC Volts
Gewicht: 63,0 g (2,22 oz)
Type lager: kogellager x 2
Motortype: gelijkstroommotor
Versnellingstype: koper
Bedrijfstemperatuur: -20 ℃ ~ 60 ℃
Werkfrequentie: 1520μs / 50hz
Grootte: 40,7 x 20,5 x 39,5 mm (1,60 x 0,81 x 1,56 in)
