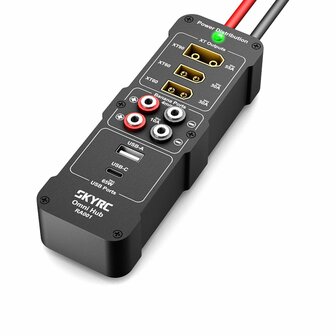

SkyRC Omni XT90 Power Distribution Hub
Product information "SkyRC Omni XT90 Power Distribution Hub"
The SkyRC Omni XT90 Power Distribution Hub is the ideal power distribution solution. With its XT90 input and a maximum continuous power output of up to 2000 W, the Omni Hub powers multiple chargers, batteries and devices simultaneously – clean, efficient and through a single, compact setup. Thanks to its practical power-strip design, the hub is equally at home on the workbench or on the go in a backpack. In addition to the high-current outputs (XT90, XT60, 4mm banana sockets), the hub also features a USB-C fast charging output with up to 65 W as well as a USB-A output.
Multiple built-in protection mechanisms ensure safe and stable power delivery at all times.
Specifications:
| Input Voltage: |
8-36V |
| Max. Input Current: |
55A |
| USB-C Output: |
5V/3A, 9V/3A, 12V/3A, 15V/3A, 20V/3.25A – max. 65W |
| USB-A Output: |
5V/3A, 9V/2A, 12V/1.5A – max. 18W |
| USB-C + USB-A simultaneous: |
5V/3.6A – max. 18W |
| XT90-F Output: |
max. 55A |
| XT60-F Outputs: |
max. 30A |
| 4mm Banana Sockets: |
max. 10A |
| LED Indicator: |
Green (operating) / Off (standby) |
| Dimensions: |
151 x 50 x 29.5mm |
| Weight: |
310g |
Note:
*The maximum output power of 2000W is achieved in combination with the SkyRC eFUEL PSU2000 power supply (AC 220-240V version, max. 1980W). The eFUEL PSU2000 is not included.
Package Contents:
1x Omni XT90 Power Distribution Hub
1x Manual
