Transmitters

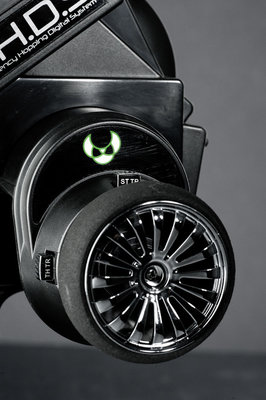

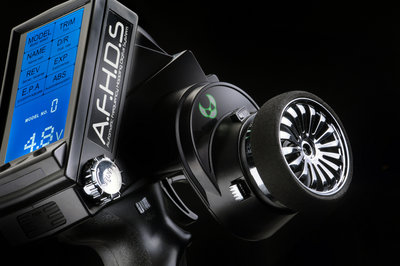

ABSIMA 2-Channel Radio "CR2S.V2" 2.4GHz incl. Receiver - 2000001

Absima's CR2S V.2 is the perfect choice for hobby level rc drivers. No matter if car or boat! The A.F.H.D.S. 2,4Ghz System secures reliable transmission and range. Made for pure driving pleasure!

Radio Specification:

• A.F.H.D.S. 2.4Ghz system
• 2-channel radio
• 3-channel receiver with "failsafe" function
• "Servo reverse" function
• "Dual rate" funtion
• Ergonomic grip
• Steering wheel with rubber foam
• Internal antenna

 Receiver Specification:

• 3-channel
• Measurement: 35 x 21 x 12mm
• Weight: 10g
• Failsafe function included

Absima 2-kanal Fernsteuerung "cr2s.v2" 2.4ghz Inkl. 2 Empfänger - 2000101

Absima 2-kanal Fernsteuerung "cr2s.v2" 2.4ghz Inkl. 2 Empfänger

Absima 3-kanal Fernsteuerung "cr3p" 2.4ghz Inkl. Empfänger - 2000002


CPU Radios are every rc car or boat drivers dream! But whats your dream of? It's as much fuctions as possible, big display, stable transmission, nice design - but for an reasonable price! Here we go! Absima's CR3P!

Radio features:

• A.F.H.D.S. 2.4Ghz system
• 3-channel radio
•  3-channel receiver
• 10 model memories
• Servo reverse
• Dual rate
• EPA
• EXP
• ABS

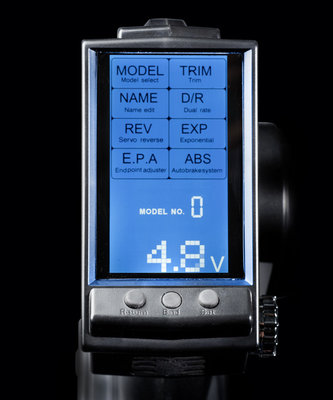

The big (39 x 72 mm), blue illuminated L.E.D. display shows all funtions and adjustments. It also keeps you updated about the radio voltage.
We putted the steering wheel in an outstanding position to keep handling as comfortable as possible. Additionaly the trim levers position allows to set, without leaving the model unattended.

Receiver specification:

• 3-channel
• Water-resistant
• Failsave included
• Measurement:
• 35 x 21 x 12mm
• Weight: 11g

C5373 MASTER GigaProp 4 Set (Mode 1)

Pichler C5373 MASTER GigaProp 4 Set (Mode 1)

Modern 4-kanaals 2.4Ghz Fernsteuerset inclusief zender en ontvanger. Dit regelt uw R / C model veilig en betrouwbaar. Het moderne, slanke ontwerp maakt de zender aangenaam te raken voor kleine en grote handen.

Product kenmerken:
- 4-kanaals proportionele digitale afstandsbediening MODE 1 (gasknuppel rechts)
- De nieuwste 2,4 GHz transmissie technologie met korte antennes
- Op basis van betrouwbare technologie
- Volledige reikwijdte (Full Range System)
- Robuust, easy-grip kunststof behuizing in normale grootte (geen speelgoed)
- Non-slip, professioneel geanodiseerde aluminium stuurknuppel
- Echte frequentie hopping

MASTER zender GigaProp 4
- Digitale trims voor alle kanalen
- Geïntegreerde V-staart mixer (Delta mixer) schakelaar selecteerbaar
- Schakelaar voor servo draairichtingen
- Trainer boek (docent / student)
- Andere ontvangers kunnen worden herschikt op elk gewenst moment
- Alle commerciële servo's aangesloten (universal plug)
- Bedrijfsspanning 4.8V =
- Afmetingen (LxBxH) = 200 x 170 x 40mm
- Gewicht = ongeveer 375g

Receiver MASTER 6K
- Gewicht = 8g
- Afmetingen (LxBxH) = 45 x 23 x 9 / 13mm
- Bedrijfsspanning = 4,8 ... 6.0V
- Volledige dekking (Full Range System)

Levering:
1x zender MASTER GigaProp 4
1x ontvanger Master 6K
1x Binding plug
- Handleiding Duits, Engels

Optioneel (aanbevolen)
- Ontvanger MASTER 6K, # C8978
- MASTER Leraar / leerling-kabel, # C9020
- Flight Simulator Aansluitset voor PC / USB-poort, # C6099

Om de zender te bedienen zijn 4 stuks gewone AA batterijen of accu´s nodig nodig (niet inbegrepen).

Pichler nummer: C5373

EAN: 4056534002597

Flysky Noble NB4 with 2 Receiver

Product information "Flysky Noble NB4 with 2 Receiver"

With the NB4 radio remote control from FlySky, driving an RC car or boat offers as much comfort as it offers technical specifications. After all, the remote control uses the new and extremely flexible AFHDS3 protocol for transmission while being ergonomically design.

In combination with this protocol, the advantages of a wireless WS2A system and the new 2.4GHz chip, a wide variety of transmitter parameters can be set dynamically. This includes channel number, channel resolution, range, anti-interference requirements and also latency. This makes it possible to freely adjust the transmitter to Your own needs via the 3.5 inch TFT display. The real-time data exchange between the transmitter and the receiver also enables increased control over the flight model with constantly updated information on temperature and speed, for example.

Features:

• Advanced and modern radio
• Ergonomic design with turnable wheel
• Suitable for both right and left handers
• Dual Battery System
• Intelligent RF configuration
• Less than 3ms latency
• Also suited for simulators and games without using an external dongle via USB



Technical Specificatons:

Transmitter
Type:	2.4GHz ISM
Frequency Protocol:	AFHDS 3
Channels:	4, 6, 8 (optional)
Suited RC Models:	Car, Boat
Distance:	>300m (Ground)
Channel Resolution:	4096
Battery:	- 1S / (4,2V) x 4300mAh LiPo - 2600mAh 18650 Dual Battery
Low Voltage Warning:	< 3,65V
Antenna Type:	Built-in single Antenna
Display:	HVGA 3,5-Zoll-TFT, Resolution 320x480px
Simulator:	USB Simulator
Charging Interface:	Micro-USB
Data Interface:	Micro-USB
Temperature Range:	-10°C bis +60°C
Humidity Range:	20% bis 95%
Online Update:	Ja
Size:	129x114x190mm
Weight:	520g
Receiver
	FGr4	FGr4S
PWM:	4	4
Type:	2.4GHz ISM
Frequency Protocol:	AFHDS 3
Suited Transmitter:	Alle Sender mit AFHDS3-Unterstützung
Antenna Type:	Einzelantenne
Voltage:	3,5-12V	3,5-8,4V
Data Interface:	PWM/PPM/i-BUS/S.BUS
Temperature Range:	-10°C bis +60°C
Humidity Range:	20% bis 95%
Online Update:	Ja
Size:	29x22x16,2mm	25.5x22x17,3mm
Weight:	8g	5,1g

Delivery:

• FlySky "NB4" Transmitter
• Reveiver: FGr4 and FGr4S
• USB data cable
• Grip shell
• Springs (S, L)
• 2x transparent protection sticker
• Manuals

Flysky Noble NB4-Pro with 2 Receiver

Product information "Flysky Noble NB4-Pro with 2 Receiver"

The Noble Pro breaks traditional standards with new ideas and offers extensive setting options for racers, crawlers and other RC vehicles. This 18CH transmitter with 7 channel modes is ideal for any terrain and shows top performance even in the most difficult situations. In addition, the new 2CH "Extreme Mode" with a new frequency algorithm ensures unimagined performance with only little delay.

The most striking feature of the FlySky Noble Pro is the holder for smartphones and the steering wheel, the position of which can be changed so that both left and right-handers can get the best out of their vehicle all the same. Together with the comfortable shape of the handle, this is definitely an extremely ergonomic transmitter overall.

Features:

• Set consisting of over 20 parts such as transmitter, 2x receiver, case and much more
• Ideal for any off-road use, whether on-road, off-road or on the water
• 5 mixing setting options and speed segmentation for optimal adaptation to every riding requirement
• And three built-in high-performance chips for great performance
• Variety of structural personalization options (e.g. different throttle levers, springs, steering wheels, ... )
• Suitable for both right and left handers
• With 4 PWM and 8 PWM receivers as required
• Including 2 exchangeable batteries for 8 hours of action each
• Wireless charging station for convenient energy refueling
• Easy to use touch menu

Technical Specifications Transmitter:

Type:	2.4GHz ISM
Frequency Protocol:	AFHDS 3
Channels:	2 (fast), 4, 6, 8, 10, 12, 18 optional
Suited RC models:	Auto, Boot, also: Roboter, Ironclad
Distance:	< 300m
Channel Resolution:	4096
Battery:	1S / (4,2V) LiPo & 18650 Dual-Battery
Low Voltage Warning:	< 3.65V
Antenna Type:	Built-in single antenna
Display:	HVGA 3,5-inch TFT color screen, resolution 320x480px, LCD white backlight, capacitive touch screen
Simulator:	USB Simulator
Charging Interface:	Micro-USB und kabelloses Laden
Data Interface:	Micro-USB
Temperature Range:	-10°C to +60°C
Humidity Range:	20% to 95%
Online Update:	Yes
Size:	120x144x274mm
Weight:	670g (include stand)

Technical Specifications Receivers:

	FGr4B	FGr8B
PWM:	4	8
Type:	2.4GHz ISM
Frequency Protocol:	AFHDS 3
Suited Transmitter:	Suitable for all transmitter supporting the AFHDS3
Antenna Type:	Single antenna
Voltage:	5.3-9V
Data Interface:	PWM/PPM/i-Bus/s.bus/i-Bus2
Temperature Range:	-10°C to +60°C
Humidity Range:	20% to 95%
Online Update:	Yes
Size:	17x29x16.6mm	35x23.3x13.3mm
Weight:	6.4g	9.4g

Delivery:

• FlySky "Noble Pro" transmitter
• Receivers: FGr4B and FGr8B
• Hard case including key
• USB data cable
• Wireless charging station
• Grip shell (XL)
• Wrist strap
• Steering wheel and sponge (L)
• 1.5mm and 2.5mm wrench
• Brake pad set
• Thread adjusting screw
• Knob
• Springs (S, L)
• Throttle (S, L, Plastic)
• Back & angle bracket
• Sticker (company logo, various)

Related links to "Flysky Noble NB4-Pro with 2 Receiver"

•  Do you have any questions concerning this product?

Hobbyking GT2E AFHDS 2A 2.4ghz 2 Channel Radio System - 9114000017-0

Hobbyking GT2E AFHDS 2A 2.4ghz 2 Channel Radio System - 9114000017-0

Intellect 6000mAh 3.7V 1S TX LiPo for Sanwa M17

Optional LiPo battery for the SANWA M17 radio. 6000mah compared to the standard 2500mah supplied in the radio.

Specifications:

Voltage	3.7V
Capacity	6000mAh
Cells	1S
Connector	RX
Dimensions	12 x 46.8 x 77.5 mm
Weight	94g

Robitronic RC Car Transmitter Bag

Robitronic RC Car Transmitter Bag

SANWA EXZES ZZ Radio Set with RX472 - 101A32071A



THE FASTEST RESPONSE OF M12S IS PORTED!
YOU CAN GET THE FASTEST RESPONSE WHICH
HAS ACHIEVED THE TRIUMPHS IN WORLD CHAMPIONSHIPS.



NOT ONLY HIGH RESPONSE BUT ALSO EXCELLENT LINEAR MOVEMENT
INCREASE THE DRIVING STABILITY IN THE FINAL MATCH.
HAVING NO EQUAL TO OTHER MODELS.



■SYSTEM: 2.4GHz Computer System FH4/FH3
■CH: 4CH
■TRANSMITTER: TX-452
■RECEIVER: RX472



[NEW FEATURES]
●Telemetry Mixing ●Template ●Vibrator ●Mode Select ●Throttle Slow ●Life-Battery Compatible ●Earphone Jack
●Ackerman Steering ●Racing Mode (Enhanced) ●Timer/Alarm (Enhanced) ●CODE10/Telemetry Assignment
●CODE AUX NAMING

[OTHER FEATURES]
●FSTN Large full dot LCD (128x256) ●Menu Selector ●ST, TH Spring adjustment ●Logger
●Feeling ●PC Link ●Monitoring ●Racing Mode ●Car Type Select ●CODE AUX
●Cross Movement Function System ●Bind ●Model Memory(50 models) ●Model Name(14 letters)
●LCD Contrast ●RF Mode Setting (FH4/FH3) ●Response Mode Setting(NOR/SHR/SSR)
●Model(Select/Copy/Clear/Sort) ●Vibrator ●Key Assignment (SW/TRIM/DIAL/LEVER)
●Buzzer(Selectable Scale/Volume) ●AUX Type Setting (AUX/AUX1/AUX2) ●Point AUX
●MOA AUX ●4WS AUX ●Trim Type(Center/Parallel) ●User Name(14 letters) ●Information
●Log(REC/RPM/VOLT/TEMP1/TEMP2/ST POINT/TH POINT/RX MODE) ●Battery Alarm
●EPA ●Trim/Sub Trim ●Servo Reverse ●Fail Safe (Radio Wave/Battery) ●Boost Menu
●Timer(Lap/Interval 1/Interval 2) ●Dual Rate(ST/TH/BR) ●Curve(EXP/ARC/CRV) ●Point Curve
●SPEED ●Anti-Lock Brake ●Brake Mixing ●TH Hold ●Ackerman Steering ●Compensation Mixing
(C-MIX1/C-MIX2) ●Safety Link ●Direct Model Select ●Language ●Customized menu ●Throttle Type
●Offset ●CH Set ●Calibration: Ex-Volume Adjustment (ST/TH/LEVER)
●Compatible Receivers: RX-482, RX-481, RX-472, RX-471 Dual-ID, RX-471W, RX-471, RX-462,
RX-461, RX-451R, RX-451, RX-381, RX-380







[SSL(SANWA Synchronized Link) Sysytem]
SANWA NEW SSL SYSTEM
●When used with compatible RX-472, RX-482, Super Vortex Series, SV-Plus Series, the setting of ESC etc. by Transmitter is available through SSL functions while driving.
●Since the setting can be done without the stop of car, the detailed adjustment in accordance with Race conditions
is available without interruption of Intervals and the change of machine conditions.
[Response of Telemetry System]
●It is often said that telemetry system reduce response speed. However, SANWA Original Data Processing and Algorithm Design makes Telemetry possible without response speed reduction.
Our Excellent Telemetry System has no response speed reduction.
●With our telemetry system, the precious race data will help the next race setting and driving.
[Response Mode]
●Please do not use Analog Servo for SHR mode or SSR mode.
If analog servo is used for SHR mode or SSR mode, the servo will be broken and will not work.
Digital servo (SRG series, Digital ERG series, SDX series) can be used both for NOR mode and SHR mode.
●SSR mode can be used only by SRG series servo.
●In SHR or SSR mode, BL-RACER, BL-FORCE, BL-SPORT, F2000, F2200, F3000, F3300, SBL-01, SBL-02 and SBL-03CR do not work. Please make sure to use NOR Mode for them.
●SV-08, HV-10, HV-12, F2500 can be used for both NOR and SHR Mode.
Please use NOR mode for the above ESC.

[System Programming]
●・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Manual(PDF)
●・PC-LINK MANAGER3 for M12S/EXZES ZZ Application Software(zip)
*Only for M12S / EXZES ZZ
Please use PC-LINK MANAGER2 for M12/EXZES Z

●・Programming Version Upgrade for EXZES ZZ(Standard)・・・・・・v401205(zip)
※The above upgrade is only for EXZES ZZ.
M12S or M12 or Exzes Z cannot be upgraded.

SANWA M12S-RS Radio Set with RX482 - 101A32371A

Sanwa M17 Radio + RX-493 Receiver - 101A32473A

Sanwa M17 Radio + RX-493 Receiver - 101A32473A
