ARM REAMER 3.0mm

Badweather Air Filter 1:8

Battery Box with Switch for Mignon Batteries

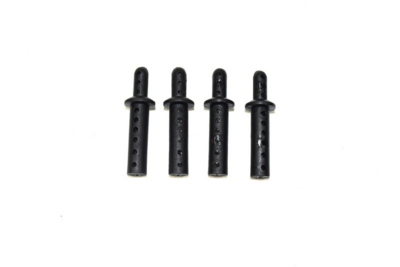

Body Post (4)

• Programmable (running mode; drag brake force; voltage cut-off; punch; maximum brake force)
• 50A continious amp

Fast and powerful, the new Hotshot 3.4 series is equipped with a powerful brushed electric motor, with heat sink, and waterproof electronic speed controller (ESC). Ready to run out of the box (EU & UK version including plug charger and battery). Shaft driven 4WD provides you with the necessary traction to maneuver the toughest obstacles and the forward/reverse ESC is beneficial in navigating tight spots. Lightweight plastic chassis, four oil filled adjustable coil over shocks, and independent suspension offer rock solid performance. Fear not! A 2.4GHz radio system and waterproof electronics ensure control, for those who dare to unleash the power.

HIGHLIGHTS

• 40A Brushed Waterproof Speed Controller
• Powerfull 15T Motor with 32.000RPM
• 2.4GHz Radio System



• Waterproof 40A brushed ESC
• Select between NiMH and LiPo battery
• Ball bearing transmission
• Oil filled adjustable shocks
• Gear differential front/rear
• Aluminum motor mount
• Complete covered transmission
• Adjustable turnbuckles & wishbones
• Motor heat sink
• Aero disc racing wheels
• Full printed body
• 2.4GHz radio System
• Sticker sheet for a unique design
• Performance hop ups available!



• Motor Type: 15T 540 Brushed Motor
• Transmission: Forward, Brake & Reverse
• Drive System: 4 Wheel Drive
• Wheelbase: 270mm
• Ground Clearance: 35mm
• Measure (L/W/H): 380x255x155 mm
• Weight: 1410g
• Tire width: 33 mm front / 42 mm rear
• Tire Ø ± 88 mm
• Shock spring force: medium / Length: 85mm f/r
• Differential oil viscosity: 3.000 front /1.000 rear
• Shock oil viscosity: 400 f/r
• Motor transmission: Pinion 23T / Gear 64T
• Pinion module: 0.6



• Speed Controller (2100002): NiMH (7.2V) & LiPo (7.4V/2S) suitable / Amps: 40A / BEC 5V/2A / Drive function: forwards/brake/reverse / Plug system: Tamiya
• Servo (2030003): 4kg steering force / 25T outdrive
• Motor (1230360): 15T / 32.000RPM / 16A / Size: 540
• Radio (2000001): 2-channel radio / 3-channel receiver / reverse / dual rate / trimming

• Buggy "AB3.4" RTR - brushed version
• 2.4GHz Radio System
• Manual
• Sticker Sheet

• Battery - Racing Pack NiMH or LiPo (up to 30C)
• Charger
• 4x AA Mignon Batteries for Radio

Charging-Cable-4mm-Bullet-Plug-EC5-300mm-ABSIMA
Features:

• Version: banana 4mm to EC5 plug
• Cable length 300 mm
• Gold contact plug 4 mm
• Cable type 14AWG

• 1 pc. Adapter cable

Charging-Cable-XT60-fits-for-EC5-15cm-ABSIMA
Features:

Version: XT60 to EC5
Suitable for all common chargers with XT60 output connector
Cable length: 150 mm
Cable type: 14AWG

Scope of delivery:

1 pc. charging cable

Version: XT60 to T-Plug
Suitable for all common chargers with XT60 output connector
Cable length: 150 mm
Cable type: 14AWG


Version: XT60 outplug plug / battery input plug fits for Traxxas
Suitable for all common chargers with XT60 output connector
Cable length: 150 mm
Cable type: 14AWG


Competition-LiPo-HV-140C/1S2P-HC-8300mAh-5mm-ABSIMA
The new ABSIMA LiPo batteries represent the current spearhead of development in lithium battery technology and offer new levels of performance. Masterful engineering skills, combined with experience from professional model sport, have resulted in a performance-optimised battery generation that is unrivalled on the track. The addition of graphene gives the battery improved properties such as higher energy density, lower internal resistance, higher discharge rates and a longer life cycle.

Advantages of a graphene-lipo battery:
The ABSIMA Graphene Lipo series can be used as a standard 3.7V LiPo battery or as a high voltage (HV) 3.8V LiPo. But what is the difference between the capacities 3.7V Standard and 3.8V High Voltage? Normal LiPo batteries have a final charge voltage of 4.2V per cell when fully charged. Due to the unique hybrid RS cell structure, the new type can handle a little more and can be charged up to 4.35V. This not only results in more power from the start, but also means that there is more power in each individual cell and therefore longer runtimes can be achieved.

How do I charge HV LiPo batteries?
First check whether your charger contains a programme for charging HV LiPos. It must be possible to set a final charging voltage of 4.35V. If this is the case, HV LiPo batteries can be charged in the same way as conventional LiPo batteries. The maximum charging rate for an ABSIMA Graphene Lipo is 5C (5 times the capacity of the battery).

Another very important note on the charging process!
Please be sure to reset the final charging voltage to 4.2V after completing the HV battery charge. Never charge a standard LiPo battery (3.7V) with a final voltage of 4.35V!

Good to know:
1. a LiPo battery should never be stored fully charged or discharged (3V under load / 3.5V open circuit voltage). For optimum battery life, it is recommended to store the LiPo battery in a cool room (e.g. cellar) with a charge level between 50%-80% of capacity. A LiPo battery that is 50% charged has a cell voltage of +/-3.85V.
2. HV-Lipos can also be charged with up to 4.2V like normal Lipos. Due to their much more compact design and lower voltage drop under full load, they still offer longer runtimes.

FEATURES:

Capacity: 8300mAh
Discharge rate (C): 140C
Voltage: 1S (3.8V HV)
Parallel: 2P
Wh: 31.54
Max. charging current: up to 5C (1C recommended)
Cable: 12AWG - 200°
Balance cable: 22AWG - 200°
Cable connections: 5mm Bullet / T-Plug
Design: Hardcase
Dimensions: 93*47*15.5mm
Weight: 146g



D8 series Diff O-Rings V2 (10pcs)

D8 Series Gearbox Set (Large Bearing)

DIFF RING / INPUT GEAR SET (43/13)

DIFFERENTIAL PADS (D815)

Drive Shafts Truggy f/r (2)
Fits for AT2.4

eatures:

• 15 turns
• 32.000 rpm
• 16A
• 7.2 volt
• Motor size 540
• Shaft length: 8,6mm
• Shaft Ø 3,19mm
• Motor length 54mm
• Motor Ø 35,7mm

Fibre Glas Tape 25mx15mm

Flat phillips head screw M3x10 (8)
Fits for ATC2.4, AB2.4, AT2.4, AMT2.4

Front CVD Drive Shaft (2)
